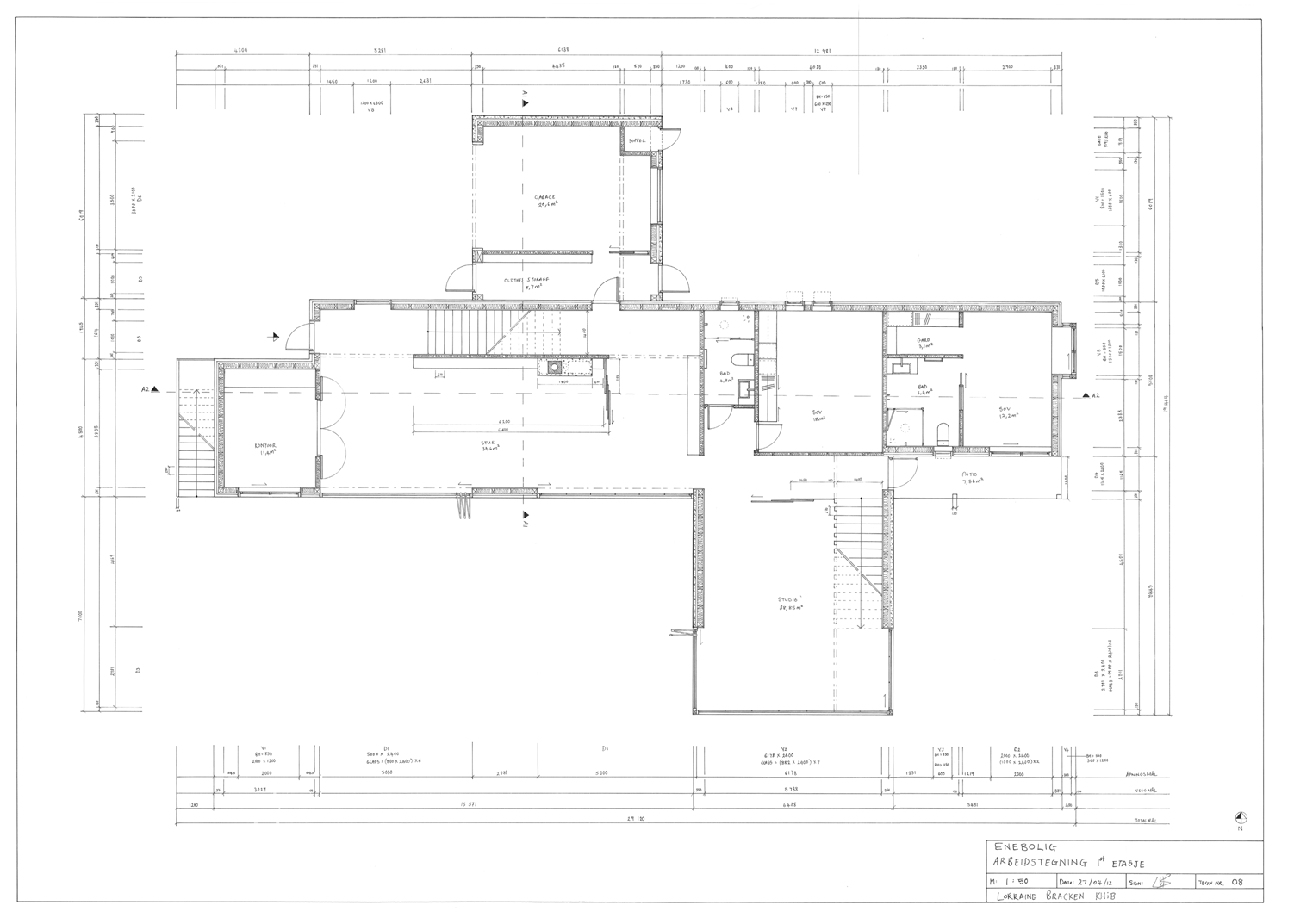

b8fa6c_bfe8c44662f694533dcd9b28505c070fGround floor working plan 1:50
*NOTE: High quality complete project slides available here.

This project totalled 14 hand-drafted technical drawings of a two story private residence, however, I have included only a sample of the various drafts here.

We were given a basic layout of an existing building and able to shift or remove certain interior walls as well as add elements and apply our own ideas.​  I divided the building into specific zones; inside/ outside, private/ public, work/ play, social and storage. Concentrating the bedrooms in one wing, meant that I could open up the middle of the house on each level for public space and socialising. I used the original lines of the building to elongate the space and make clean and easy traffic zones and connections between the inside and outside. Furthermore, widening the angle of the A-frame roof allowed more usable space on the upper level.

The complete scheme included: Plans of both floors 1:100, Flooring plan of ground floor 1:100, Working plan of each floor including dimensions, insulation, material details etc. 1:50, Furniture plans of each floor 1:50, Lighting plan of the first floor 1:50, Four Interior Elevations 1:20, and 2 Sections 1:100.

b8fa6c_7174e678ca9e02e7d0529b27f0521b30         gulv plan        himlingsplan 2nd etasje

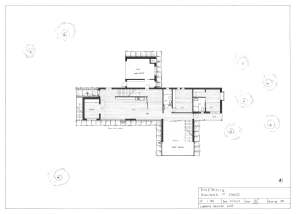

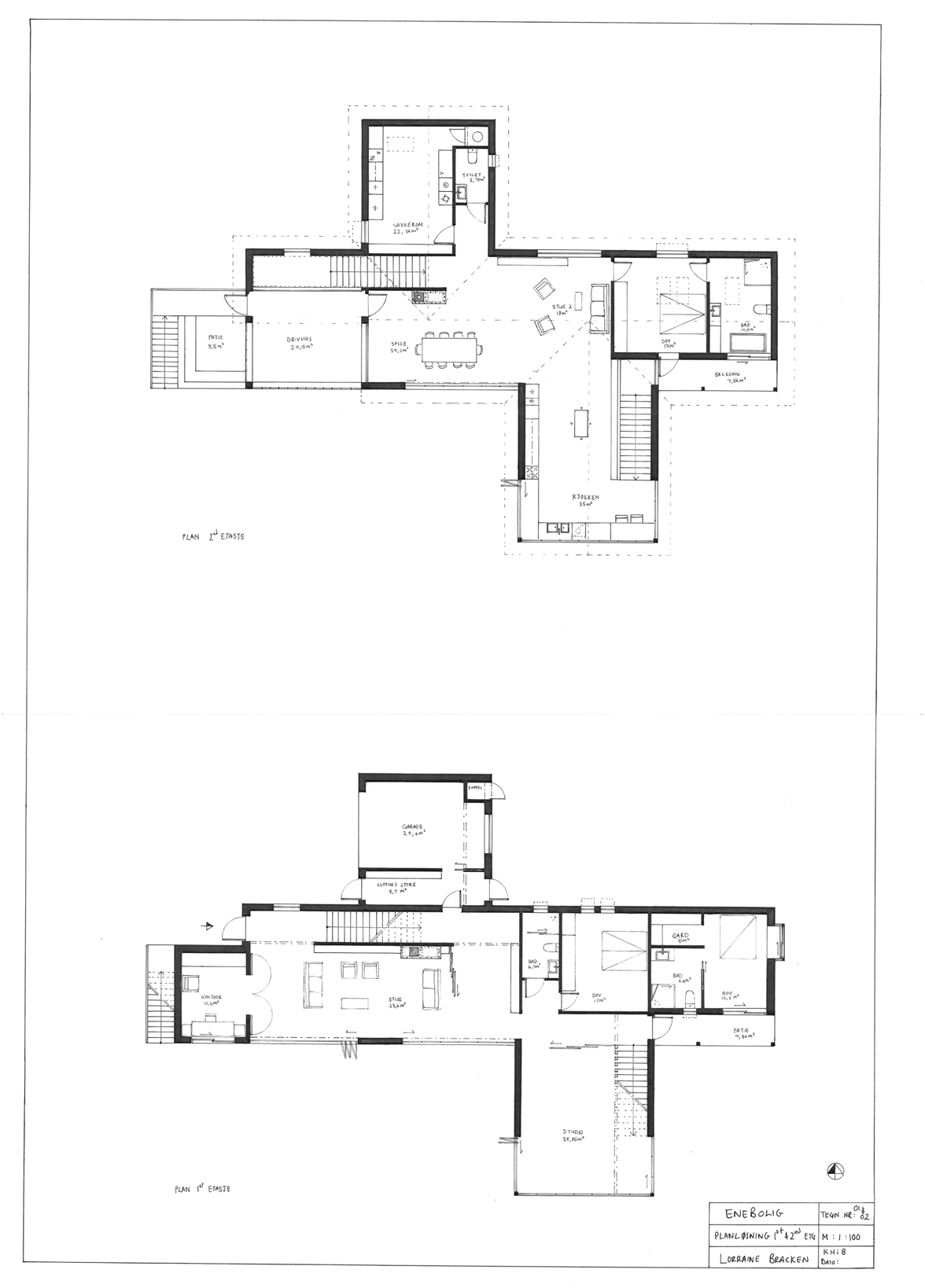

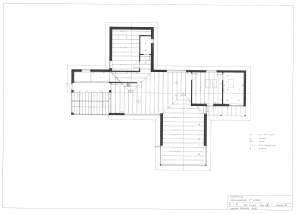

Furniture plans 1:100                                  Flooring plan 1:100                                                                Lighting/ceiling plan 1:50

b8fa6c_e1103e97bda2dc4c1ac3a524ce509412

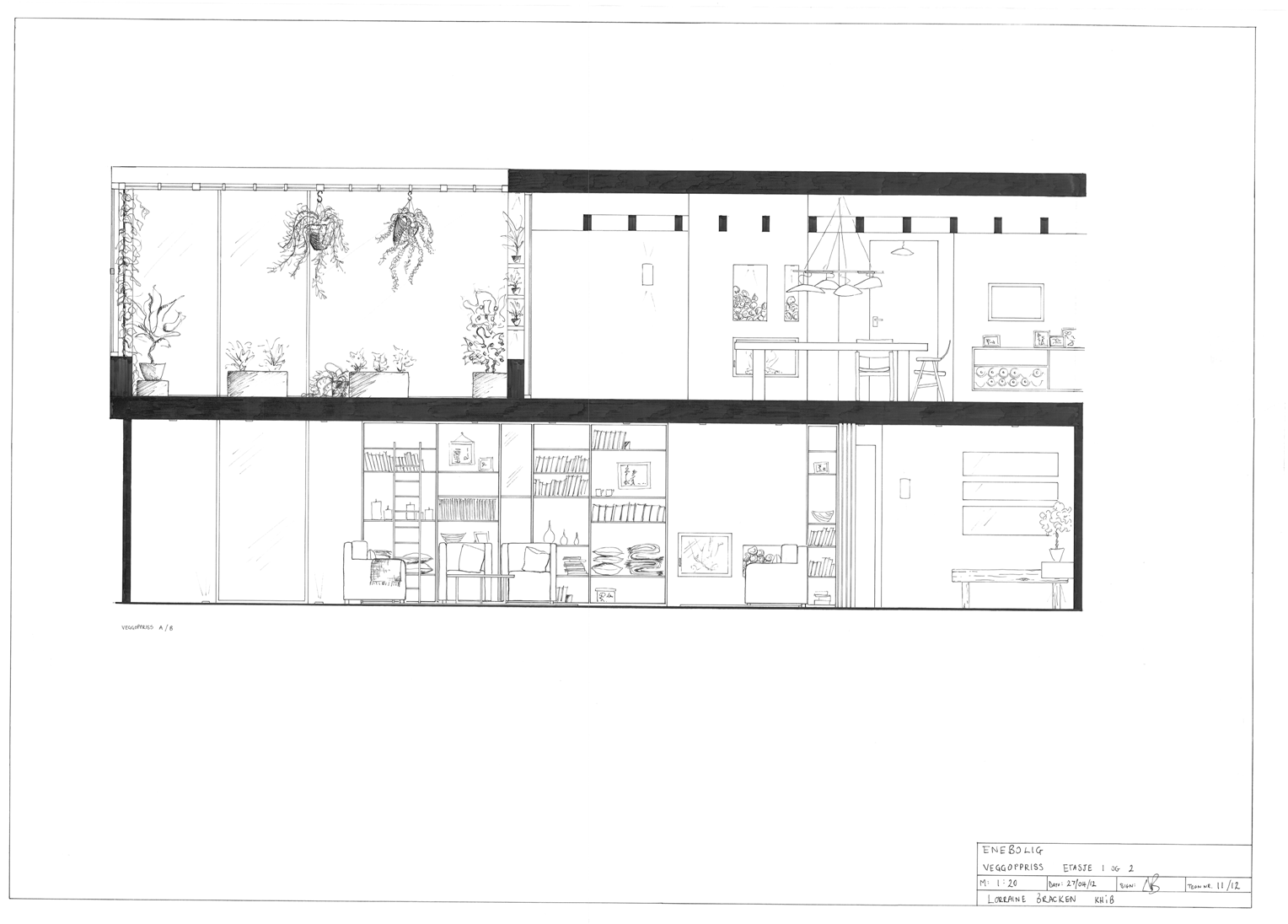

 Elevation 1:20

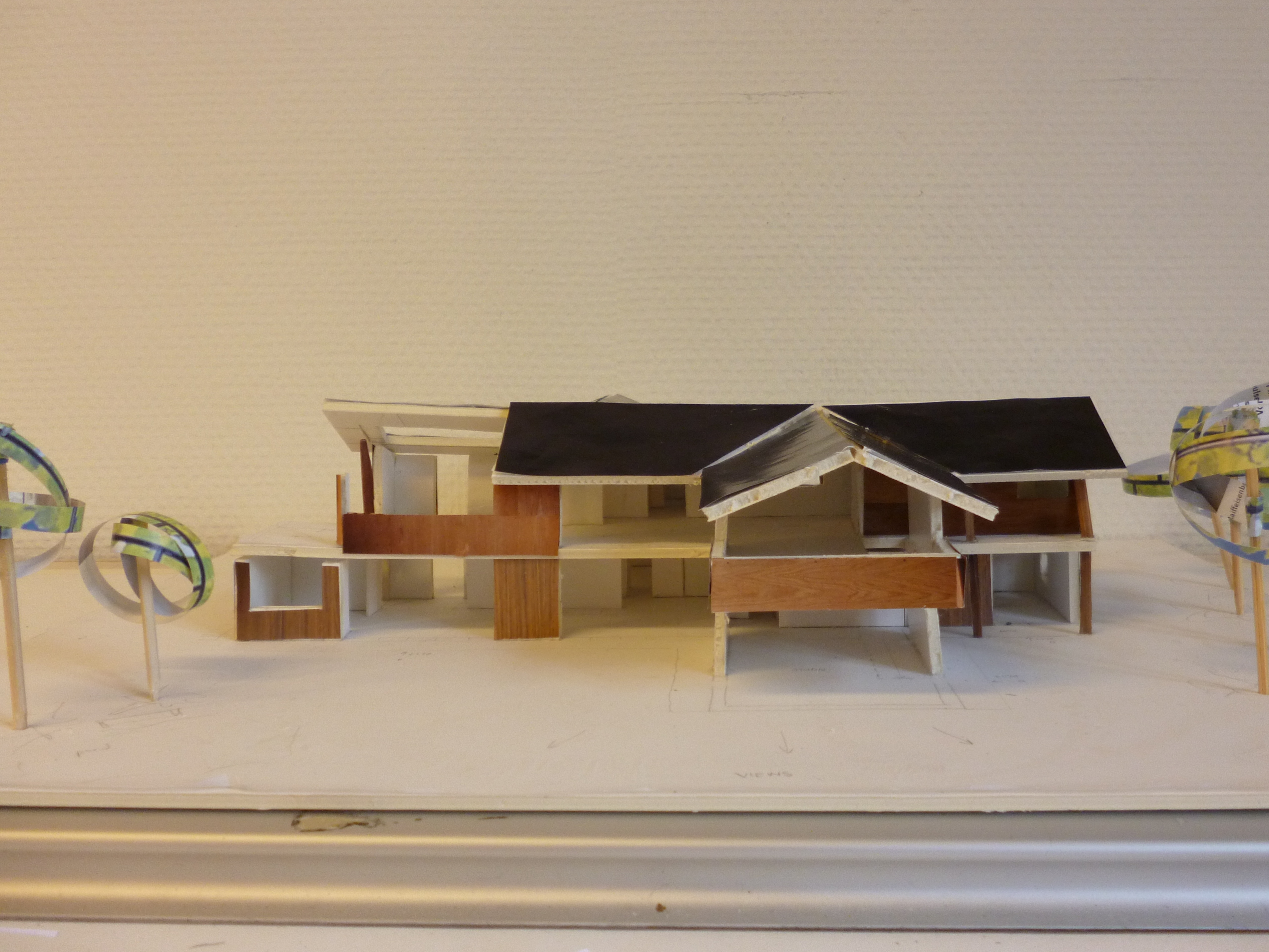

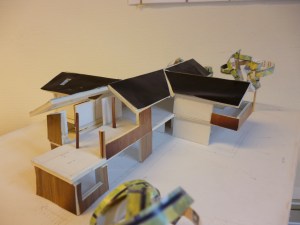

       b8fa6c_f0065ef4d08a7e5c0244d402cac13856    b8fa6c_98a8dc8a9074233319f63d2b6408cff2    b8fa6c_9083b3c12797a04da3d8ee79f5dbd4e5

Sections 1:100
