home renovation

NOTE: High quality complete project slides are available here.

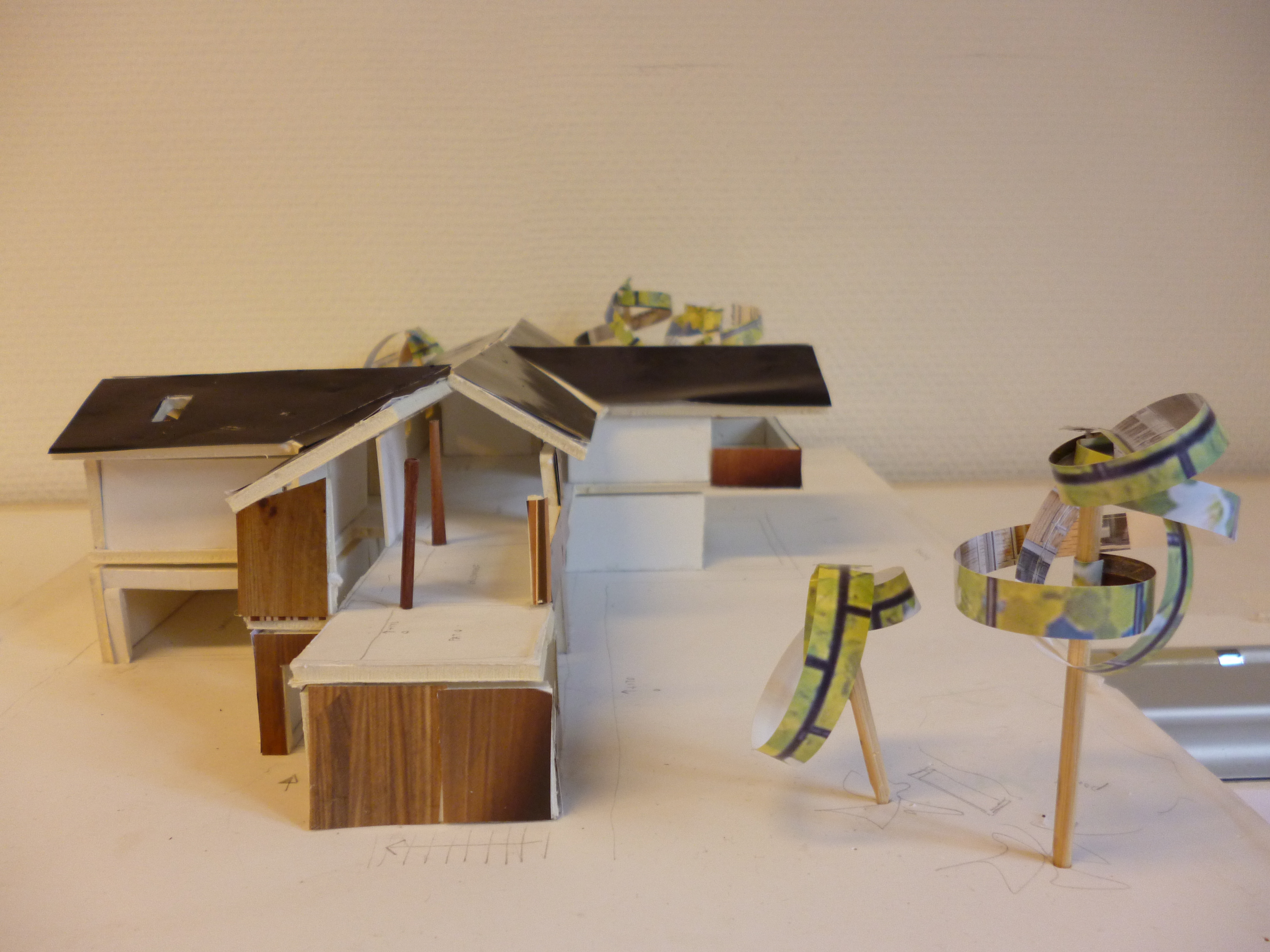

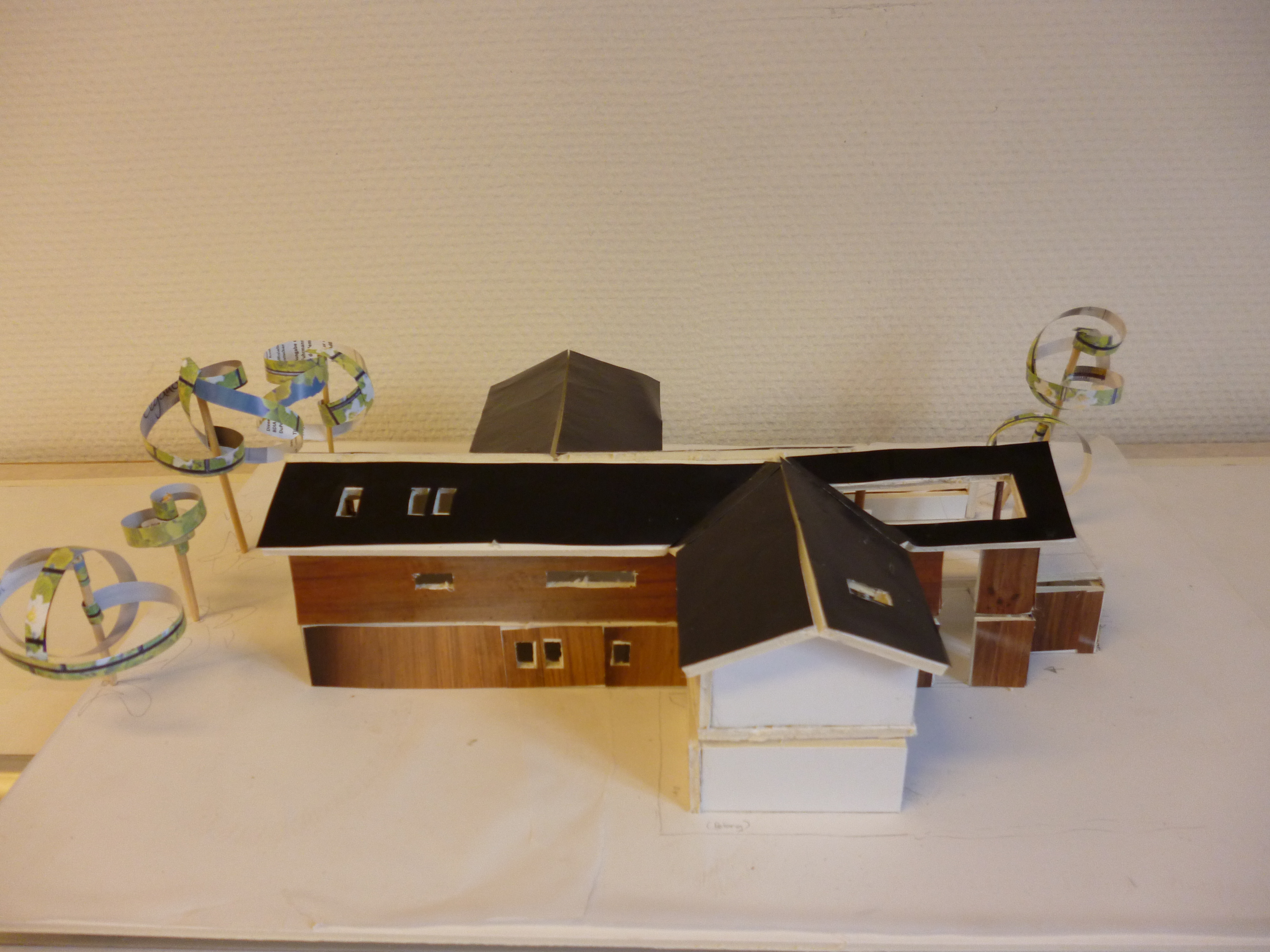

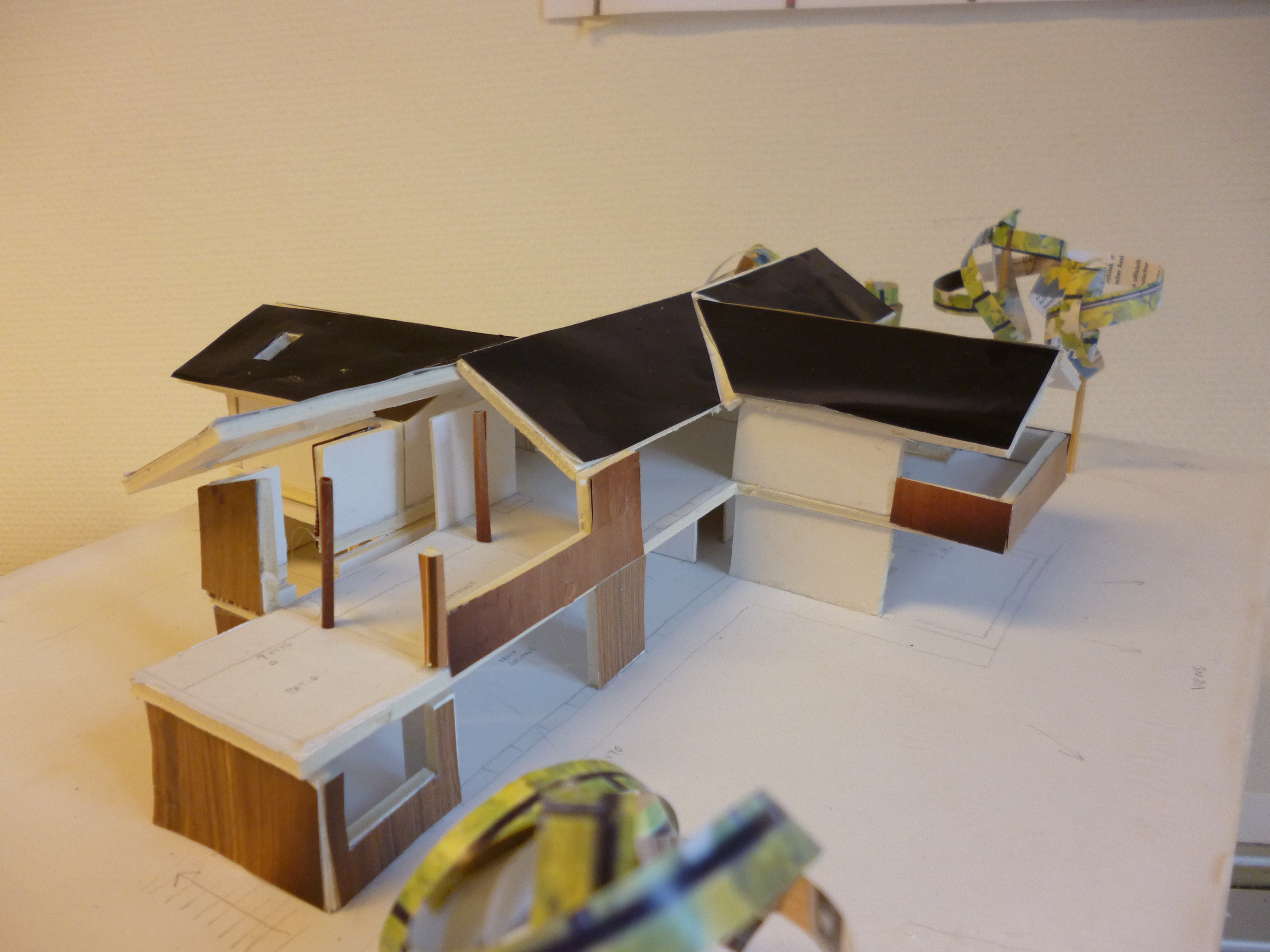

b8fa6c_f0065ef4d08a7e5c0244d402cac13856                 b8fa6c_9083b3c12797a04da3d8ee79f5dbd4e5b8fa6c_cf6d00258ec9865b01521e5e3dd6f86f                 b8fa6c_7312d12b363b49083365ac054d2efbaf

This project totalled 14 hand drafted technical drawings of a two STORY private residence, however, I have included only a sample of the various drafts here.
We were given a basic layout of an existing building and able to shift or remove certain interior walls as well as add elements and apply our own ideas to parts of the roof and upper level.​  I divided the building into specific zones, such as; inside/ outside, private/ public, work/ play, socialising and storage. Concentrating the bedrooms in one wing, meant that I could open up the middle of the house on each level for public space. I used the original lines of the building to elongate the space and make clean and easy traffic zones and connections between the inside and outside. Furthermore, widening the angle of the A-frame roof allowed more usable space on the upper level.

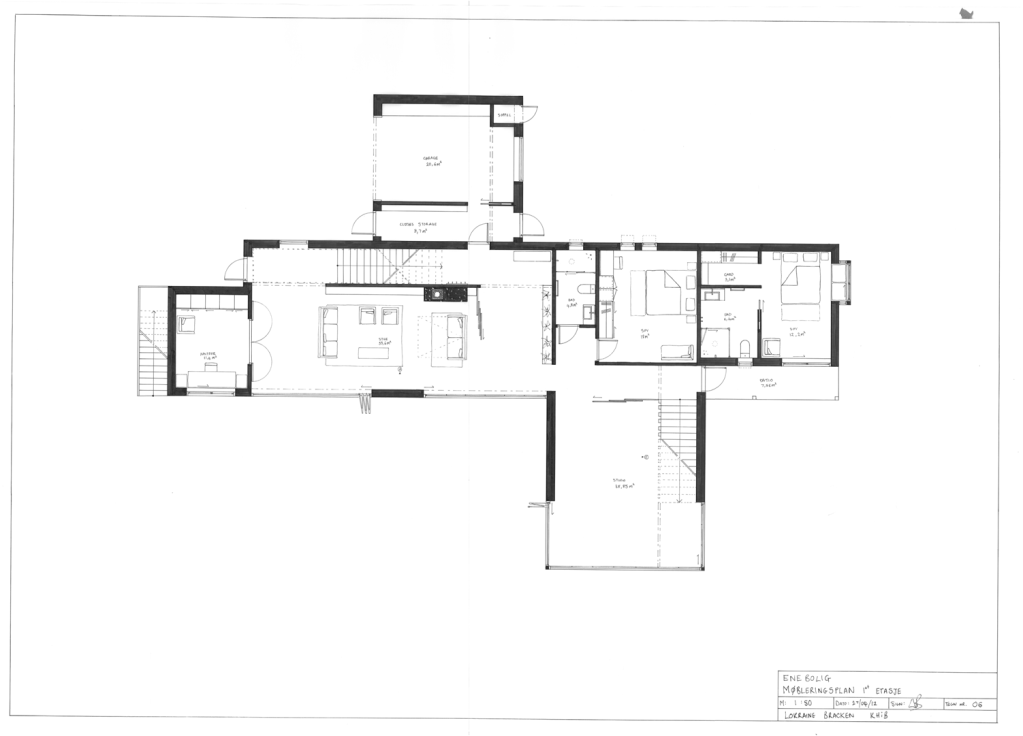

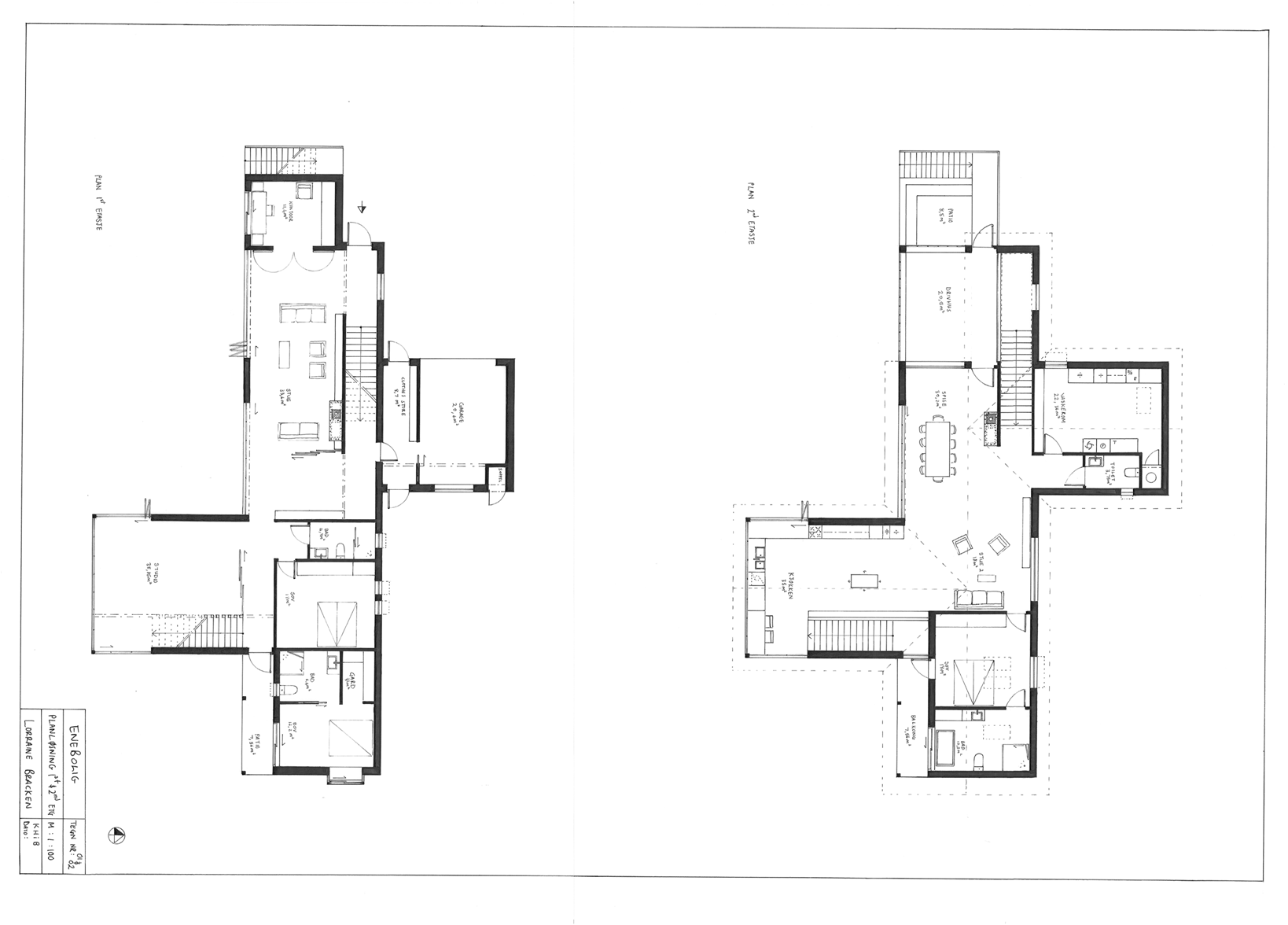

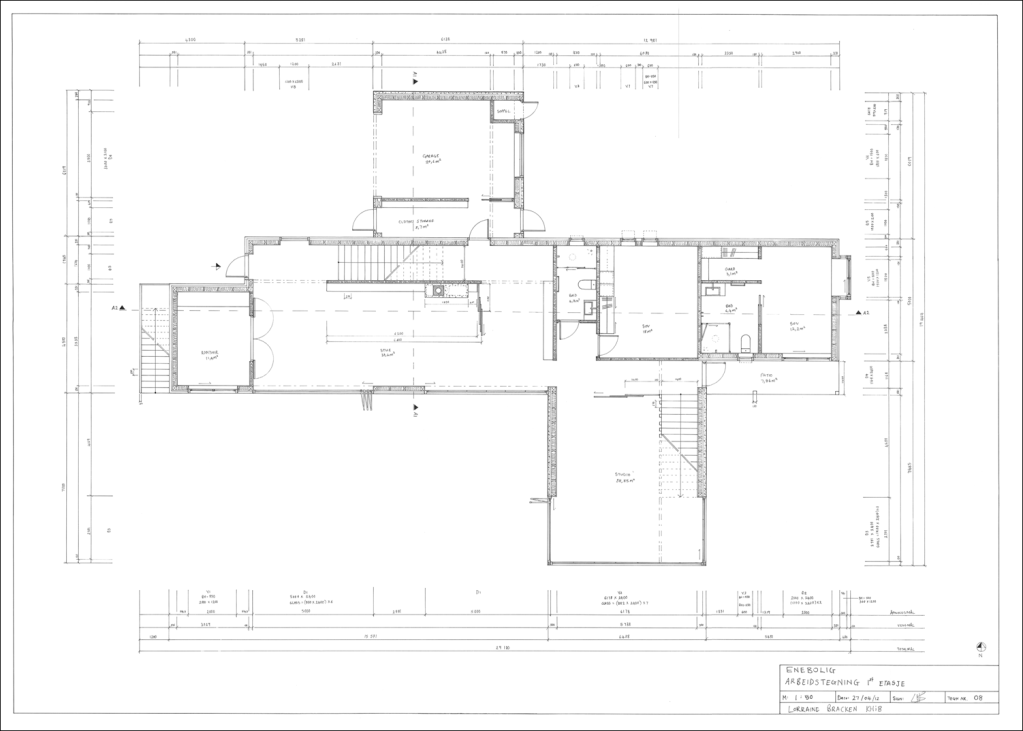

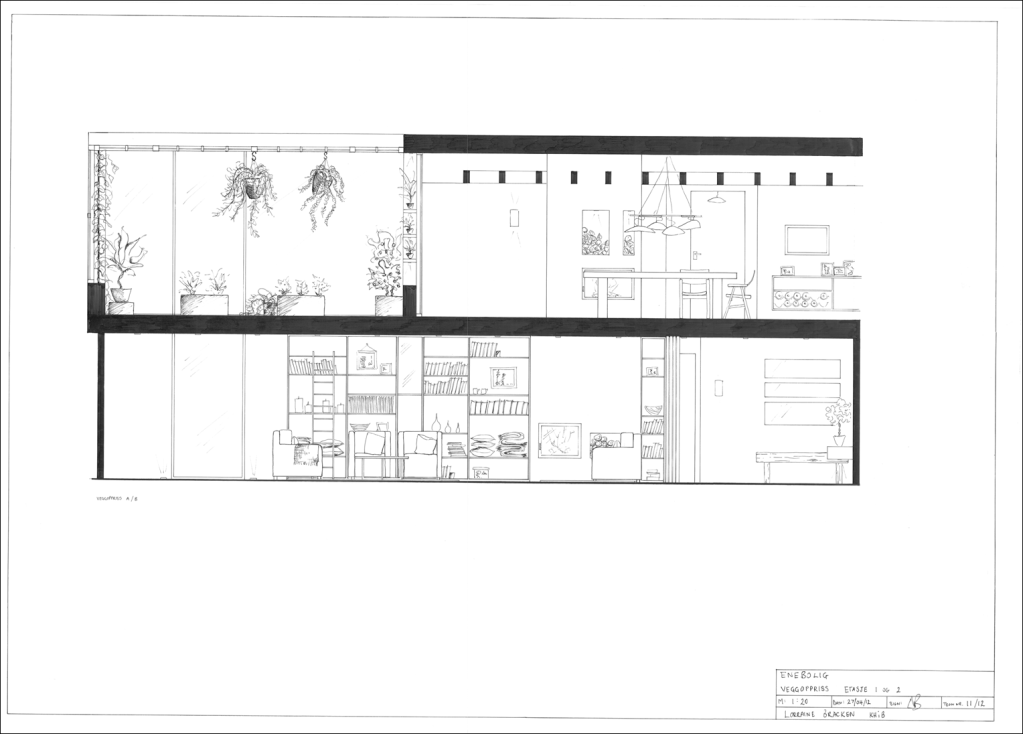

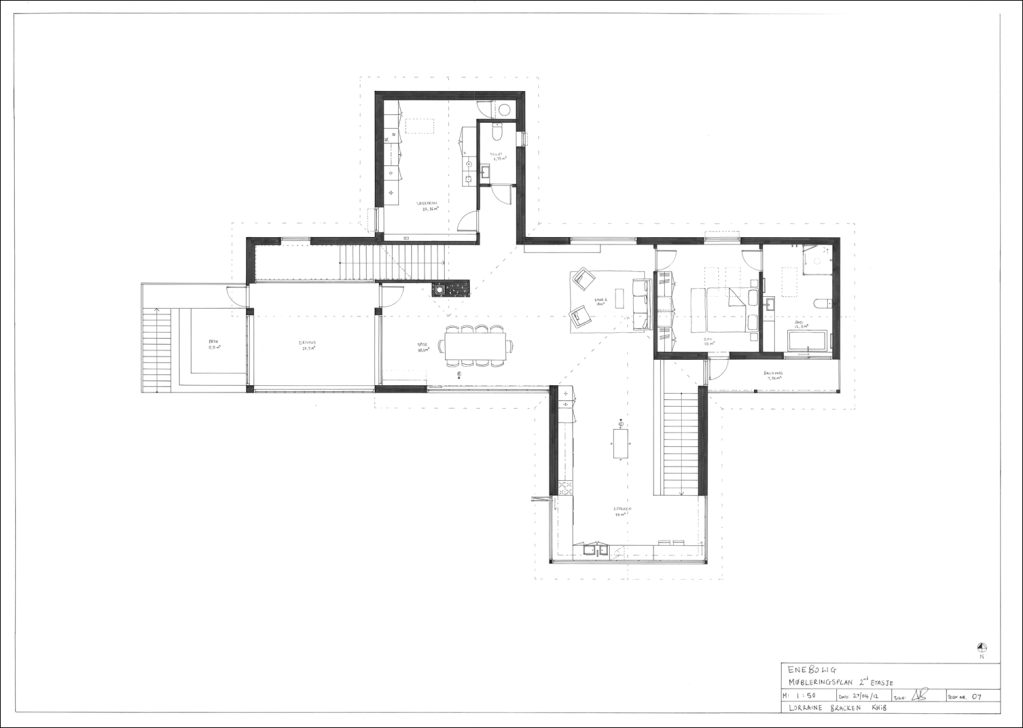

The complete scheme included: Plans of both floors 1:100, Floor plan of ground floor 1:100, Working plan of each floor including dimensions, insulation, material details etc. 1:50, Furniture plans of each floor 1:50, Lighting plan of the first floor 1:50, Four Interior Elevations 1:20, and 2 Sections 1:100.



b8fa6c_7174e678ca9e02e7d0529b27f0521b30

b8fa6c_bfe8c44662f694533dcd9b28505c070f

b8fa6c_46f8c2cd6cabf3acb6e7949619a7faf8

b8fa6c_eb3ba72f26fee618a92d1571cb2da663

b8fa6c_e1103e97bda2dc4c1ac3a524ce509412
